YJYC100-T-2-HV1-HD80-BT2①②R-M1 Dual Axis Industrial Electric Joystick Rotary Switches Control Handle Operator
Product Model: YJYC100-T-2-HV1-HD80-BT2①②R-M1
Product Features
YJYC100-T-2-HV1-HD80-BT2 type joystick has high-strength control rod and excellent proportional control or switch output. The product is easy to install, flexible to operate, uniform in hand, long life and maintenance-free.
Application
This industrial joystick is mainly used for hydraulic proportional control and variable frequency motor control of rotary drilling rigs, high-altitude fire trucks, crane shield machines, oil hoists, etc.
Product Parameters
Dual Axis Cross Operation
All-metal Structure, Integrated Installation, Spring Self-reset, Operating Force 5N
Built-in Imported Omron Switch, Hall Potentiometer Life 5 Million Times
IP64（Above The Mounting Plate）
Working Temperature -25-80℃
Analog Output：
Input Voltage DC5V
Output Voltage 00-2.5-5V
Independent Linear Tolerance 0.5%
Resolution Gigantic
Resist Temperature Coefficient ±400ppm/℃
Output Smoothing 0.5%
X And Y Axis Electrical Angle ±32°
Insulation Resistance 50 MΩ@ 500 VDC，60 sec.

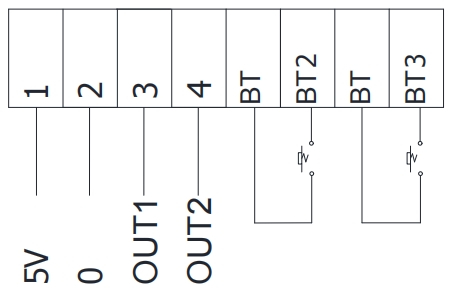

Product Wiring Diagram

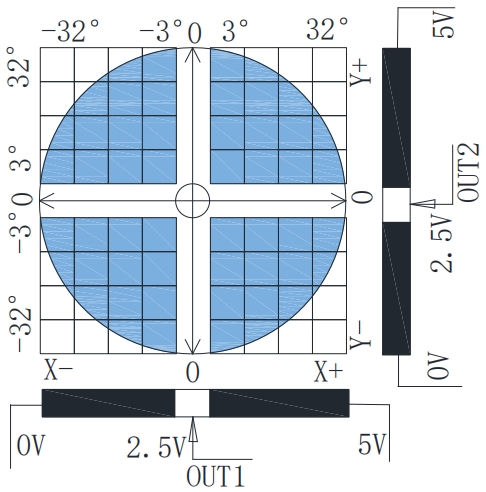

Product Output Characteristics

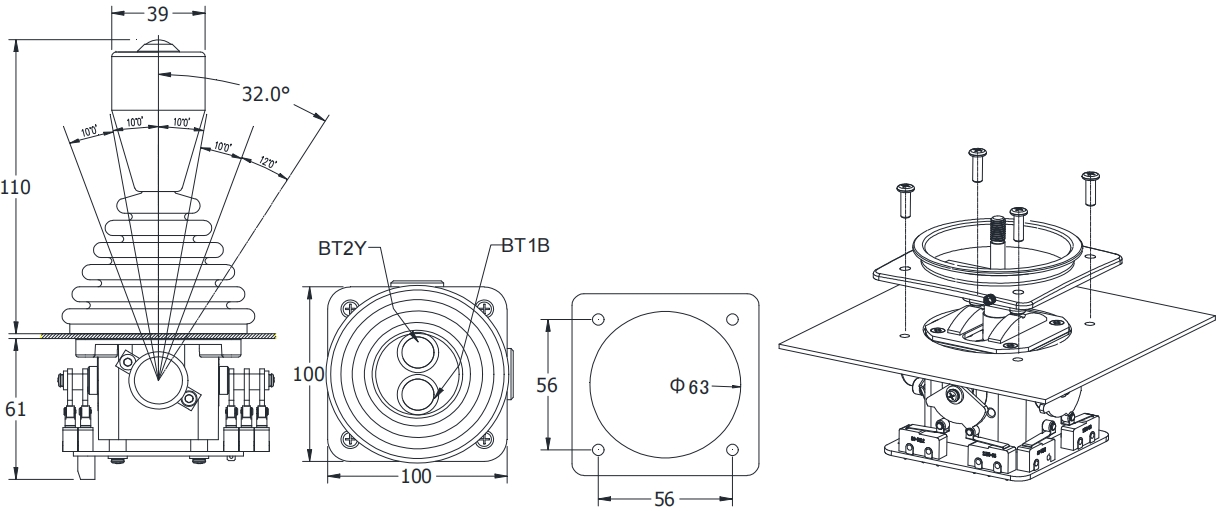

Product Installation Diagram
