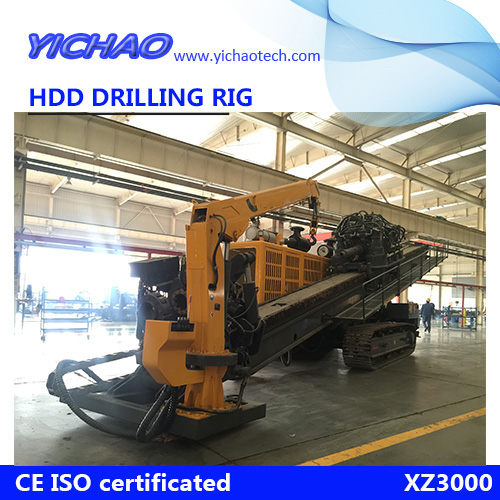

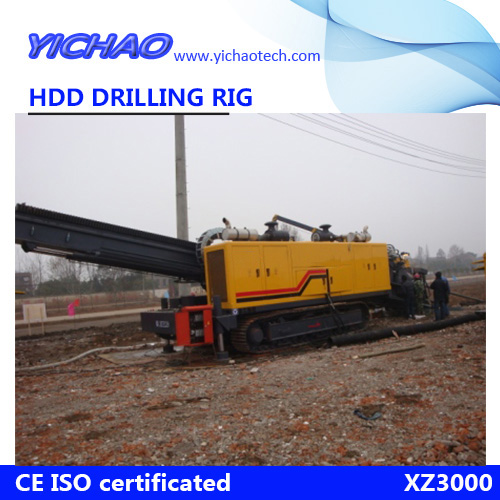

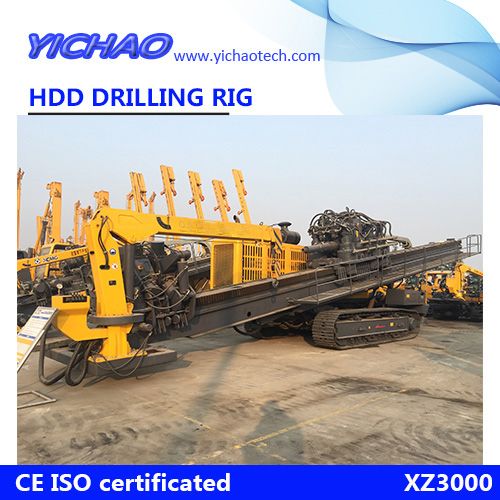

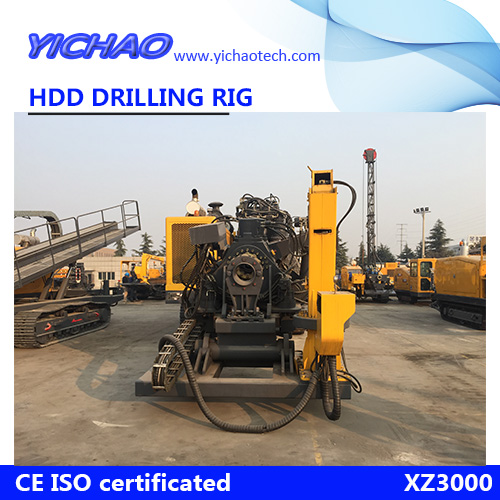

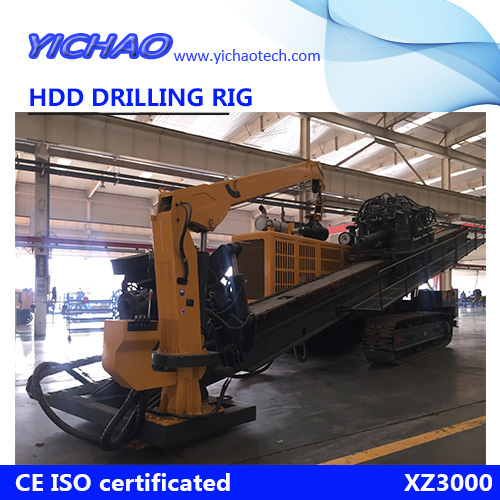

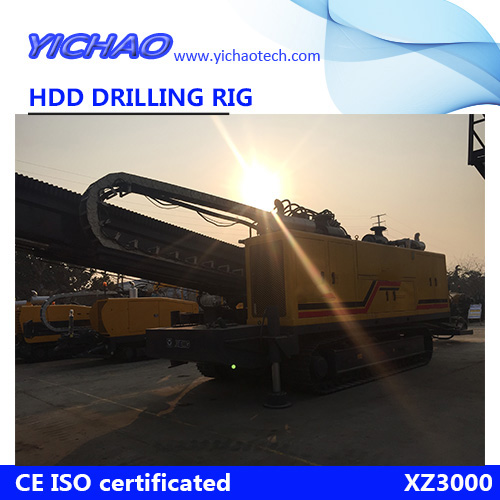

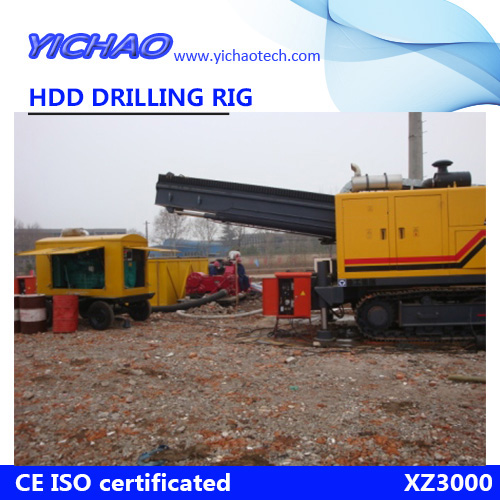

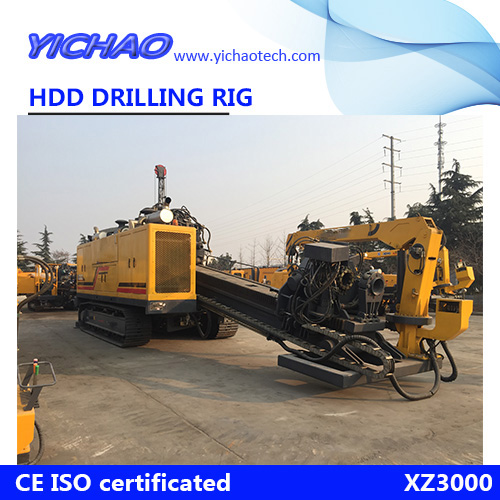

XZ3000 XCMG Trenchless Horizontal Directional Drill Rig Machine HDD Drill Machine
XZ3000 XCMG Trenchless Horizontal Directional Drill Rig Machine HDD Drill Machine
Product model: XZ3000 horizontal directional drilling rig
The XZ3000 horizontal directional drilling rig with the integral and self-loading design adopts various advanced technologies such as the closed energy saving circuit, electro-hydraulic proportional control and load sensing control as well as the proprietary technologies of the Company. Its main performance parameters and control technologies have reached the world advanced level. The main components of hydraulic system, transmission system, speed reducer and electric control system are of top-grade international brand and high reliability.
1. Technical features
Hydraulic system: Various advanced control technologies such as the closed energy saving circuit, load sensing control and electro-hydraulic proportional control are adopted. Imported elements can ensure the reliable quality.
Rotation: The high-speed motor drives the speed reducer to operate the gearbox with two speeds, and is protected automatically from high pressure.
Pusher and puller: Rack-and-pinion mechanism, with two speeds under continuous regulation, and high working efficiency.
Cab: Double-person air-conditioned weather cab where the control and operating devices are concentrated and comfortable to operate.
Engine: The turbocharged engine with high power reserve ensures the drilling power and emergent needs. The imported high-power transfer case ensures the service life.
Drill stand: High-strength assembled drill stand is suitable for drill stems of different lengths; the sliding drill stand facilitates the angle adjustment.
Drill stem holder: Full-floating holder and on-board crane make the dismounting and mounting of drill stem more efficient and easy.
Crawler: Self-propelled steel crawler, making the machine easy to transfer.
Wire-controlled travel: Wire-controlled travel, making the machine easy and fast to transfer among work sites.
Monitoring protection: Various parameters of engine, hydraulic pressure and filtration are monitored and alarmed so that the machine can be protected effectively.
2. Main technical parameters
| Item | Unit | Qty. | |
| Engine | Manufacturer | Chongqing Cummins Engine Company | |
| Model | NTA-855 | ||
| Rated power | kW / rpm | 298/2,100 X 2 | |
| Pusher and puller | Type | 6-motor rack-and-pinion transmission | |
| Max. pulling/feeding force | kN | 3,000/3,000 | |
| Running speed of power unit | m/min | 0 ~ 18 | |
| Rotation | Type | Four-motor gear transmission | |
| Max. torque of power unit | N.m | 110,000 | |
| Rotation speed of power unit | r/min | 0 ~ 76 | |
| Drill stem | Type | Standard API petroleum drill stem | |
| Diameter | mm | φ127, φ140 | |
| Length (single piece) | m | 9.6 | |
| Drill stand | Type | Sliding box-type drill stand, with walk platform | |
| Adjusting angle | ° | 0 ~ 18 | |
| Type | Full-rotating telescopic-boom crane truck | ||
| On-board crane | |||
| Max. lifting mass | t | 3.2 | |
| Type | Self-propelled steel crawler | ||
| Travel drive | |||
| Travel speed | km/h | 2 | |
| Slurry pump | Type | Hydraulic drive (external) | |
| Flow rate | L/min | 2,000 | |
| Cab | Double-person | ||
| Overall dimension | mm | 16,000X3,300X3,600 | |
| Weight | t | 46 | |
3. Configuration of main components
| Engine | Chongqing Cummins Engine Company |
| Transfer case | Germany Stiebel (imported) |
| Master cylinder | USA SAUER (imported) |
| Rotating motor | USA SAUER (imported) |
| Push-pull motor | USA SAUER (imported) |
| Handle | USA SAUER (imported) |
| Speed reducer | Italy Bongfiglioli (imported) |
| Crawler | Shantui construction machinery chassis |
| Travel speed reducer | Germany Rexroth (imported) |
| On-board crane | |
| Hose union | Xidefu (imported) |
4. Configuration of main components
The XZ3000 horizontal directional drilling rig is an integral device. The machine is mainly composed of the chassis, power unit, drill stand, engine system, vice, cab, on-board crane, hydraulic system, electrical system and other components.
4.1. Chassis
The chassis is mainly composed of the main vehicle frame, left and right travel devices. The rear end of vehicle frame is fitted with hydraulic outriggers. The built-in planet speed reducer (with motor) is used as the travel speed reducer, which has a high output torque and a compact structure. The wired-controlled travel adopted can regulate the speed continuously and make it easy and safe to transfer and adjust the machine between work sites.

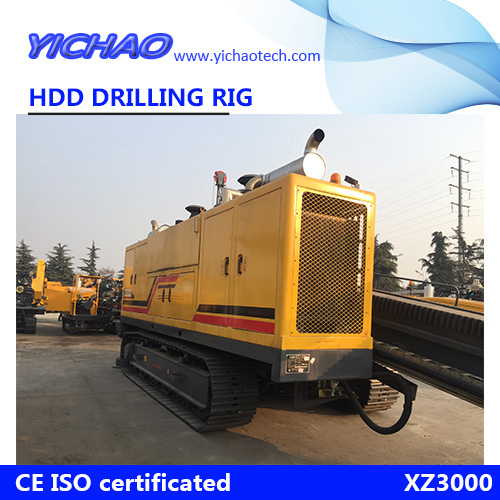

4.2. Engine system
The NTA-855 turbocharged engine supplied by Chongqing Cummins Company is adopted, which has a strong power and a rated power up to 392 KW, saves fuel and is fitted with the potent water radiator, ensuring its long service life.

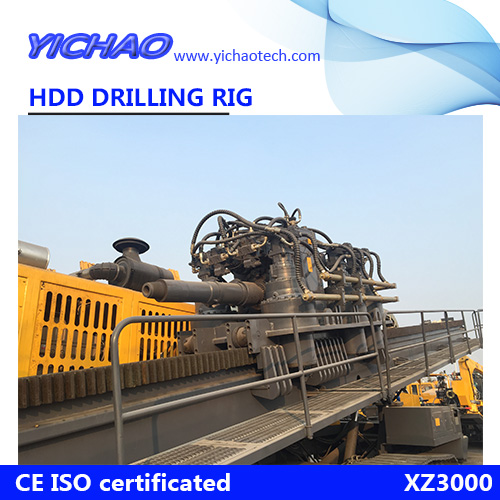

4.3. Power unit
The power unit is driven by imported motor and speed reducer. The power unit has a compact structure and high work efficiency. Its high and low speeds can be adjusted continuously so it is suitable for different work conditions. The power unit is fitted with a damping device so that the drill stem threads are protected effectively.
4.4. Pusher and puller
The pusher and puller offer the feeding force or pulling force to the power unit through the imported motor, speed reducer and rack-and-pinion mechanism. This mechanism is strong, reliable and stable. The drill stand is easy to slide back and forth to adapt to the drilling angle and gradeability.

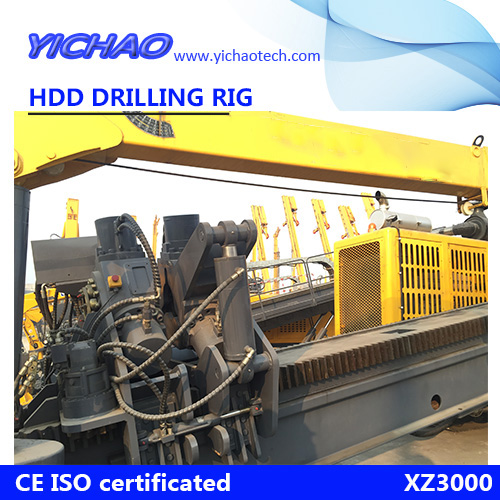

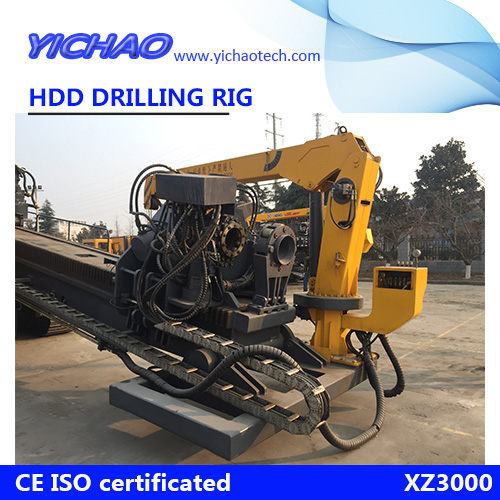

4.5. Potent drill stem holder
It is composed of the upper and lower vices which operate in accordance with the rotation and movement of power unit to screw up or off the drill stem threads. Driven by the motor, the holder can move back and forth on the drill stand, and the distance between front and rear vices is adjustable.

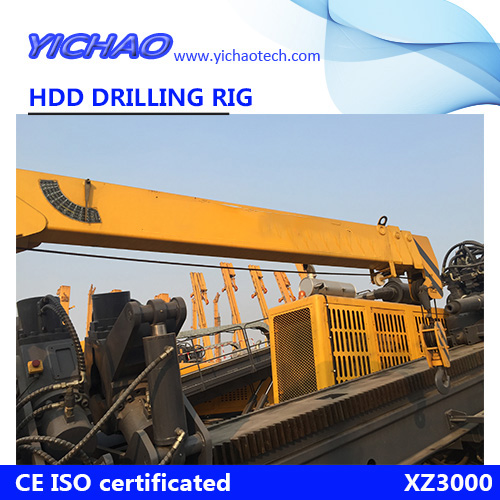

4.6. On-board crane
The full-rotating telescopic-boom crane truck adopted facilitates the lifting, dismounting and mounting of drill stem and can also be used to lift other drill tools so as to reduce the work load.
4.7. Cab
The cab is a double-person air-conditioned cab where the operator and direction controller can work together conformably.
4.8. Electrical system
PLC controller is adopted to control all the actions of the drilling rig. Under the control of PLC, the pressure supervision, engine monitoring and various function warnings can match the rotation and power of the engine speed.
It is mainly used to control the functions of rotation, pushing and pulling, vice and travel, etc, and to monitor the parameters and protect the engine and hydraulic system. It is composed of the left console, right console, instrument console and travel control box, etc. The electro-hydraulic proportional valve adopted can realize the stepless speed regulation. The manual emergency system is set.
4.9. Hydraulic system
The circuit, drilling and pulling of power unit use the economic and efficient closed circuit. The imported hydraulic elements are adopted, ensuring the high reliability of products. The independent cooling system ensures that the hydraulic system can work reliably for a long period.
5. Optional parts for users
5.1. Drill stem and drill tool
The petroleum drill stem produced by Shanghai Bao Steel, Bohai Nkk and other manufacturers can be selected. The cutting-type or squeezing-type expansion cut with a diameter of 300 mm ~ 1,600 mm can be selected.
5.2. Guide system
DCI wired control system can be selected.
5.3. Slurry pump system
The Lanzhou Shengda or Leike skid-mounted slurry pump which is a horizontal three-cylinder and single-acting reciprocating piston pump can be selected. The diesel engine is used to drive the slurry pump through the clutch and gearbox. The pump is connected with the main machine through high-pressure water supply pipe.
5.4. Slurry mixing system
20 m3 slurry mixing plant can be selected.
6. On-board technical documents
The following technical documents are provided for XZ3000 horizontal directional drilling rig:
Packing list
Certificate of conformity
XZ3000 operation instructions
XZ3000 parts catalogue
User’s manual of NTA-855 diesel engine
Note: The products will be improved along with the technical advancement and the difference will be defined during ordering.
