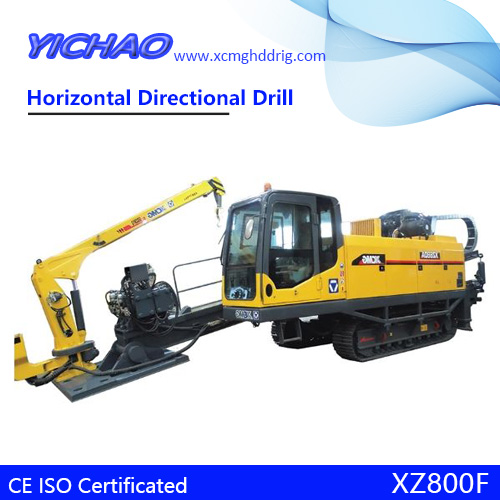

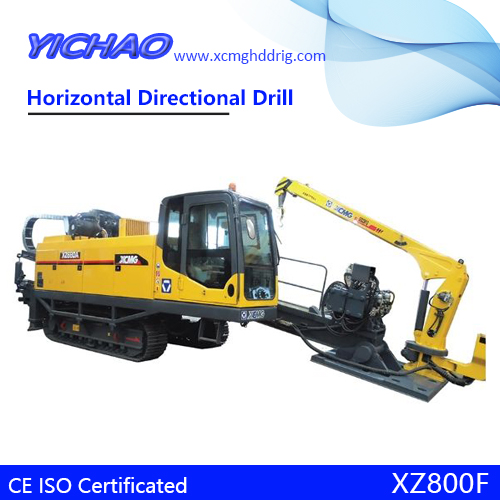

XCMG XZ800F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
Product model: XZ800F horizontal directional drilling rig
Manufacturer: Xuzhou XCMG Basic Engineering Machinery Co., Ltd.
The XZ800F horizontal directional drilling rig is an integrated, fully self-contained design. It adopts a number of advanced control technologies such as closed energy-saving circuit, hydraulic pilot control, load-sensitive control and the company’s proprietary technology. Its main performance parameters and control technology have reached the domestic level. leading level. The main components such as hydraulic system, transmission system, reducer, and electrical control system are made of domestic and foreign brand products with reliable quality.
1. Highlights
1. A new generation of smart drilling rigs with a digital display system that directly displays the main construction parameters such as rotational torque, push and pull force, etc., overcoming the shortcomings of traditional drilling rigs that require conversion using pressure gauges, and is easy to operate.
2. Adaptive engine power, increased extreme load control, and automatic idling, saving 10% in fuel consumption;
3. Multi-working mode selection, according to different stratum working conditions, select the corresponding operating mode, the equipment has wide adaptability and high work efficiency.
4. The rod torque on the power head is equipped with an overload protection system, which adopts electronic sensing. It has fast response, sensitivity, high reliability and is adaptable to complex working conditions.
5. Efficient one-button operating system, semi-automatic one-button upper rod, one-button unloading rod, one-button unclamping of vise, one-button working speed, one-button high-speed rotation, one-button push-pull high speed, operating efficiency increased by 15%.
6. Intelligent safety control system, including power head position judgment, automatic deceleration of the front and rear positions of the power head to reduce impact, and semi-automatic anti-collision interlocking system of the power head to avoid misoperation.
7. Mud flow multi-speed stepless speed regulation system and mud self-starting and stopping technology save mud and reduce pollution.
8. The tilting vise is combined with the rotating cab, the machine has a wide field of vision, multi-functional double handles, and a wireless proportional walking system, making the operation comfortable, efficient and safe.
9. Double rocker arms provide stable support and the lowest soil penetration height in the industry. It is a powerful tool for urban construction.
10. Optional power-increasing power head can double the pulling force of the power head to meet the special needs of customers.
2. Drill pipe and drilling tool configuration
XZ800F horizontal directional drilling rig drill pipe, drilling tools and other accessories are configured as follows:
| Name | Type | Form | Specification | Note |
| Drill pipe | Welded | ￠102mm×4.5m | ||
| Drilling Rigs | Back Reamer | Extrusion | ￠450mm | XCMG |
| ￠600mm | ||||
| ￠750mm | ||||
| ￠900mm | ||||
| ￠1050mm | ||||
| Tunnel | ￠450mm | |||
| ￠600mm | ||||
| ￠750mm | ||||
| ￠900mm | ||||
| ￠1050mm | ||||
| Accessories | Pilot guide bit | 102 | XCMG | |
| Guide plate | 102 | |||
| Puller | 102 | |||
| Puller | 102 | |||
| Transfer case | 80T | |||
| Connect | 102 | |||
| Mu System | Mud Mixing System | 5m3 | ||
| Instrument | Guide nstrument | Navigator E | XCMG | |
| Detector | 8100 | Radiodetection | ||
3.The main technical parameters
| Item | Parameter | ||
| Engine | Manufacture | Dongfeng Cummins | |
| China IIII | Model | L9CS4 290C | |
| Rated Power | 213 kW/ 2100 r/min | ||
| Thrust/Pull | Max thrust-pull force | 800/1200kN | |
| Max thrust-pull speed | 50m/min | ||
| Rotation | Torque | 35000 N·m | |
| Rods | Diameter × Length | Φ102mm×4.5m | |
| Mud Pump | Max Flow rate | 800 L/min 600 L/min |
|
| Max pressure | 10 Mpa | ||
| Weight | 16500kg | ||
4.Main component configuration
| Name | Manufacturer |
| Engine | Dongfeng Cummins |
| Rotating Pump | XCMG |
| Thrust/Pull Pump | XCMG |
| Auxiliary Pump | Permco |
| Thrust/Pull Valve | XCMG |
| Carriage Rotation Motor | XCMG |
| Carriage Thrust/Pull Motor | XCMG |
| Carriage Speed Reducer | XCMG |
| Crane | XCMG |
5.Overall machine appearance and transportation
XZ800F drilling rig equipped with semi-automatic drill pipe loading and unloading device overall dimensions
| Item | Unit | Parameter |
| Overall length（A） | mm | 10650 |
| Overall width (B) | mm | 2450 |
| Overall height(C) | mm | 2600 |
6.On-board technical documents
XZ800F HDD includes following documents when delivery.
Product Certificate
Instruction Manual
Operation and Maintenance Manual of Engine
Quality Assurance Manual of Engine
Operation and Maintenance Manual of Loader Crane
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
