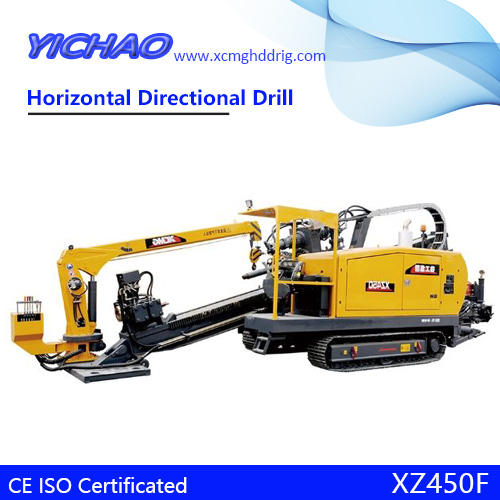

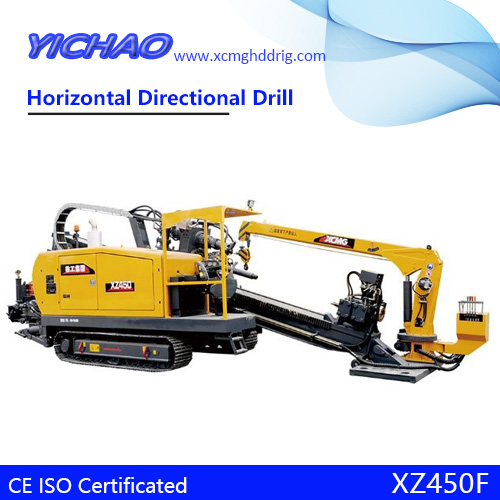

XCMG XZ450F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
Product Model：XZ450F Horizontal Directional Drill(HDD)
Manufacturer：XCMG Foundation Construction Machinery Group Co.; Ltd.
XZ450F HDD is the new products which set advanced technology, user experience,efficiency of construction as a whole, and pay more attention to construction requirements,operation habit, system energy saving, and could be widely used in urban pipeline construction such as electric power , communication, cable TV and so on .
1.Features Introduction
1.The controller + double handle + display integrated operating system provides comfortable operation performance and flexible adjustment performance for the whole machine. The first-class brand hydraulic components are selected to ensure reliable operation of the hydraulic system of the whole machine.
2.Gear rack thrust/pull design insures operation. Floating carriage can protect the screw
thread of the rods.
3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.The machine adopts armrest box switch, logic interlock, optional electric shock protection, instant force increase 20% and other innovative technologies, safety meets the requirements of EU CE certification.
5.Sliding, rotating system multiple output, modular common rail fuel system and electronic control module, system energy saving, high efficiency of construction, efficiency increased by 15%.
6.Aviation damping seat, HD display, multifunctional integrated handle, open engine compartment,high operation comfort, convenient maintenance.
7.Support the diverse needs of customers, the machine can be increased with mud antifreeze,automatic loading rod, electrical shock protection automatic thread oil daub etc, reduce the working strength, improve the construction efficiency.
2.Drill and Drilling Tools(Optional)
XZ450F HDD with Drill and Drilling Tools have good performance and stable quality to make sure construction successfully. Other accessories of XZ450F HDD are configured
as follows:
| Name | Type | Form | Specification | Remarks |
| Drill | Integral/Welded | ￠83mm×9mm×3m | ||
| Drilling Tools | Reamer | Squeezed style | ￠300mm | |
| ￠400mm | ||||
| ￠500mm | ||||
| ￠600mm | ||||
| ￠700mm | ||||
| ￠800mm | ||||
| ￠900mm | ||||
| Reamer | Runner type | ￠300mm | ||
| ￠400mm | ||||
| ￠500mm | ||||
| ￠600mm | ||||
| ￠700mm | ||||
| ￠800mm | ||||
| ￠900mm | ||||
| Accessories | Drill guide | 83 | ||
| Starting lever | 83 | |||
| Guide plate | 83 | |||
| Torques | 83 | |||
| L-nut | 83 | |||
| Male slider | 83 | |||
| Female slider | ||||
| Splitter | 50t | |||
| Connect | 83 | |||
| Mud system | Mud Mixing System | 2立方 | ||
| 3立方 | ||||
| Instrument | Guide Instrument | Navigator E/ET | XCMG | |
| F2 | US DCI | |||
| F5 | ||||
| SE | ||||
| Detector | 8100 | Radiodetection | ||
3.Main Technical Parameters
| Item | Unite | Parameter | |
| Engine | Manufacturers | / | Dongfeng Cummins |
| Model | / | B6.7CS4-260C | |
| Rated Power | kW/r/min | 179 /2200 | |
| Thrust/ Pullback | Type | / | Piston Motor+ Reduction Box |
| Max Thrust/ Pullback force | kN | 450/530 | |
| Max Thrust/ Pullback speed | m/min | 55 | |
| Rotation | Type | / | Piston Motor+ Reduction Box |
| Max Rotation torque | N ·m | 19000 | |
| Max. Rotation speed | r/min | 185 | |
| Pipe | D × L | mm×mm | φ83×3000 |
| Mud pump | Max Flow rate | L/min | 450 |
| Max Pressure | MPa | 8 | |
| Weight | kg | 12000 | |
4.Main Part Configuration
| Name | Manufacture factory |
| Engine | Dongfeng Cummins/SDEC |
| Rotation Pump | Danfoss |
| Thrust-Pull Pump | XCMG |
| Auxiliary Pump | Permco |
| Rotary Motor | XCMG |
| Thrust-Pull Motor | XCMG |
| Reduction Box | XCMG |
| Hydraulic tube | XCMG |
| Hydraulic oil cylinder | XCMG |
| Hand Shank | XCMG |
| Walking speed reducer | XCMG |
5.Transport Program
The machine transportation Dimension 6500×2250×2450mm
Shipping weight(Simple ，Free of Drill and Drilling Tools) 12t
Shipping weight(Optional Cab ，Pipe Loader ，Free of Drill and Drilling Tools) 13t
6.Accompanied Attached Documents
XZ450F HDD machine start when accompanied by the packing list, include the following technical documents:
Product Certificate
Product Manual
Engine Specification
Engine Warranty
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
