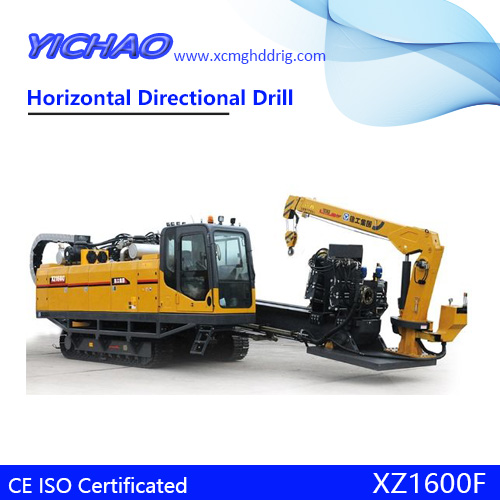

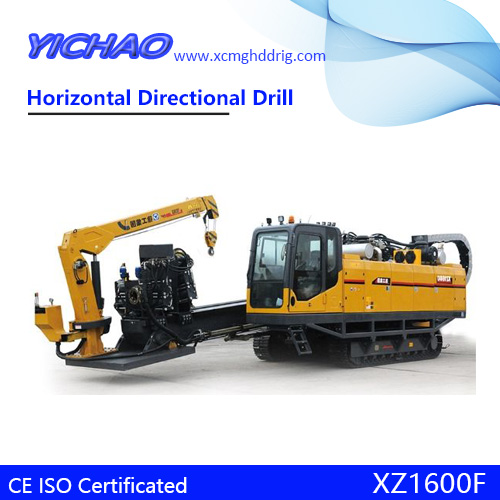

XCMG XZ1600F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
Product Model： XZ1600F Horizontal Directional Drill
Manufacturer： XCMG Foundation Construction Machinery Co. ，LTD.
The XZ1600F horizontal directional drilling rig is an integrated fully self-contained design. It adopts a number of advanced energy-saving control technologies such as closed energy-saving loop, electro-hydraulic proportional control, load-sensitive control and the company’s proprietary technology. Its main performance parameters and control technology have reached International advanced level. Hydraulic system, transmission system, reducer, electrical control system and other main components are selected from first-class International brand products with high reliability.
1.Features Introduction of HDD
1. The digital instrument automatically displays the actual torque, push-pull force and other main construction parameters during construction, and is easy to operate; the electronic sensing technology is sensitive and can provide timely feedback on instantaneous overload and reliably protect the drilling rig.
2. PE pipeline elastic balance release technology can effectively prevent equipment damage caused by the reaction force of the back-towing pipeline and improve the reliability of equipment construction.
3. The patented technology of the rotatable tooth seat enables automatic centering of the drill pipe and reliable clamping.
4. Overload protection technology, the drilling rig rotation torque, push-pull force and vise clamping force are all adjustable and adopt digital pressure regulation technology, which is convenient and simple to adjust and can be accurately preset.
5. The cab can rotate 45° to improve operating comfort.
6. Mud self-starting and stopping technology, mud flow adaptive technology, the drilling rig can automatically open/close the mud channel according to the working status of the drilling rig, and can automatically adjust the mud flow according to the current engine speed, push-pull speed, hole expansion stage, etc., reducing a large amount of mud loss.
7. Vise and semi-automatic one-button operation, realizing one-button clamping of the shackle with a vise and one-button flipping and leveling of semi-automatic, greatly reducing the number of repeated operations by the operator.
8. Constant torque automatic hole expansion function realizes constant torque automatic hole expansion construction based on load feedback, further optimizing the automatic hole expansion function with high efficiency and high quality.
9. Swing drilling function. The drilling rig can quickly rotate forward and reverse through the power head to perform swing drilling to solve problems such as stuck drill and drilling difficulties during actual construction.
10. Multi-working mode mode, setting three working mode switching modes: normal, soil layer, and rock layer, which can be applied to different working conditions such as rapid cutting of soil layers and micro-motion control of rock layers. The mode parameters can also be modified according to actual needs.
11. Rotary gear adaption, an automatic gear control system based on rotating stepless speed regulation and rotating torque negative feedback, automatically adjusts the gear when it detects that the current torque does not match the gear for a long time, effectively realizing anti-overload protection and High efficiency construction.
12. The clamping force of the vise is adaptive and the clamping pressure of the vise can be automatically set according to the current torque limit value, effectively reducing the wear of the vise teeth and the wear of the drill pipe and drilling tools, and improving the life of the drilling rig and drilling tools.
13. Memory cruise function, one-key cruise function based on push-pull speed lock, memory, rotation speed lock, memory, can restore the construction status of the previous cycle with one key, and can be effectively used in a more stable expansion stage.
14. The engine intelligent module includes functions such as automatic idle speed, one-button operating speed, and engine power control, which can effectively reduce fuel consumption in standby mode and achieve engine protection under extreme load conditions.
15. Safety module, including functions such as power head position information monitoring, power head deceleration zone setting, semi-automatic anti-collision, upper rod torque limit, etc., effectively improving the safety of the entire machine.
2.Drill pipe drilling tool configuration
The XZ1600F horizontal directional drilling rig drill pipe, drilling tools and other accessories are configured as follows:
| Name | Type | Form | Specification | Note |
| Drill pipe | Welded | ￠114mm×6m ￠127mm×6m |
NC46 API NC50 |
|
| Drilling Rigs | Back Reamer | Extrusion | ￠450mm | XCMG |
| ￠600mm | ||||
| ￠750mm | ||||
| ￠900mm | ||||
| ￠1050mm | ||||
| ￠1200mm | ||||
| Tunnel | ￠450mm | |||
| ￠600mm | ||||
| ￠750mm | ||||
| ￠900mm | ||||
| ￠1050mm | ||||
| ￠1200mm | ||||
| ￠1300mm | ||||
| Accessories | Pilot guide bit | 114/127 | XCMG | |
| Guide plate | 114/127 | |||
| Puller | 114/127 | |||
| Puller | 114/127 | |||
| Transfer case | 100T/150T | |||
| Connect | 114/127 | |||
| Mud System | Mud Mixing System | 5m3 | ||
| Instrument | Guide nstrument | Navigator E | XCMG | |
| Detector | 8100 | Radiodetection | ||
3.Main technical parameters
| Item | Unit | Parameter | |
| Thrust-pull force | kN | 1700 | |
| Carriage Maximum operating speed | m/min | 45 | |
| Carriage thrust-pull motor amount | 件 | 6 | |
| Carriage Max Torque | N·m | 52000 | |
| Carriage spindle speed | r/min | 110 | |
| Carriage Rotary Motor amount | 件 | 2 | |
| Maximum counterbore diameter | mm | Φ1300 | |
| Maximum drilling length | m | 1200 | |
| Drill pipe length | m | 6 | |
| Drill pipe diameter | mm | Φ127/Φ114 | |
| Lugs angle | ° | 10～17 | |
| Engine type | Cummins L9 CS4 360C | ||
| Rated power | kW/(r/min) | 264/2100 | |
| Maximum Torque | N·m/(r/min) | 1600/1200 | |
| Track gauge | mm | 2025 | |
| Track track | mm | 3165 | |
| Track width | mm | 450 | |
| Minimum ground clearance | mm | 292 | |
| Maximum walking speed | km/h | ≥2.4 | |
| Maximum Climbing Slope | % | ≥30 | |
| Airborne mud pump | Maximum flow | L/min | 950 |
| Truck mounted crane | Maximum lifting capacity | t | 3.2 |
| External dimensions (transportation status) | Length | m | ≤11.7 |
| Width | m | ≤2.76 | |
| Height | m | ≤3.55 | |
| Working Weight | t | 26 | |
4.Core parts subsidiary
| Core parts | Matching manufacturer |
| Engine | Cummins |
| Rotary pump | Sauer |
| Push pump | Sauer |
| RotaryMotor | MHP20- 111 ×2 |
| PushMotor | XCMG |
| Push reducer | XCMG |
| Controller | Rexroth |
| Main valve | AMCA |
| Handle | HAIMOOO |
| Walking reducer | XCMG |
| Hydraulic cylinders | XCMG |
| Lorry crane | XCMG |
| Hydraulic tubing | XCMG |
5.The Machine Appearance and Transportation
The machine transportation Dimension 11700×2760×3550mm
Shiping weight(free of Drill and Drilling Tools) 26t
6.Accompanied Attached Documents
HDD machine start when accompanied by the packing list, include the following technical documents：
Product certificate
Product Manual
Engine Specification
Air Conditioning of Construction Vehicle General Manual
Operation and Maintenance Manual of Loader Crane
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory,
shipping list with items)
