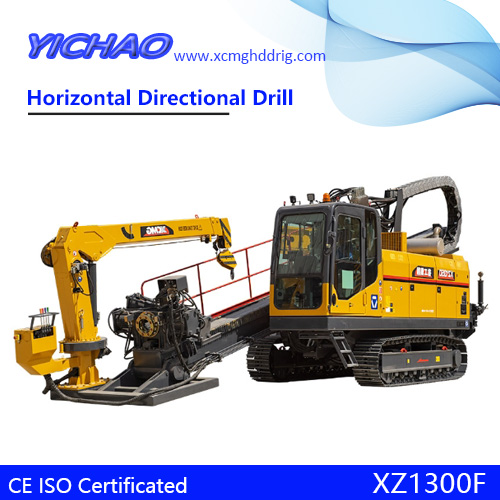

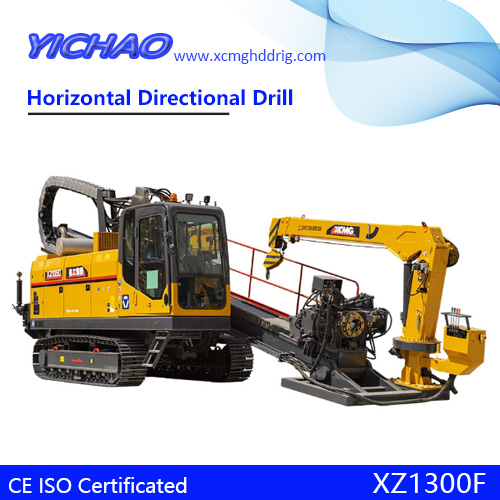

XCMG XZ1300F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
Product model: XZ1300F horizontal directional drilling rig
Manufacturer: Xuzhou XCMG Basic Engineering Machinery Co., Ltd.
The horizontal directional drilling rig is an integrated, fully self-contained design. It adopts a number of advanced energy-saving control technologies such as closed energy-saving circuits, electro-hydraulic proportional control, and load-sensitive control as well as the company’s proprietary technology. Its main performance parameters and control technology have reached international standards. advanced level. The hydraulic system, transmission system, reducer, electrical control system and other main components are made of first-class international brand products with high reliability.
1.Features Introduction of HDD
1. A new generation of smart drilling rigs with a digital display system that directly displays the main construction parameters such as rotational torque, push-pull force, etc., overcoming the shortcomings of traditional drilling rigs that require conversion using pressure gauges, and is easy to operate.
2. The engine power is adaptive, increases extreme load control, and automatically idles at the same time, saving 10% in fuel consumption;
3. Multi-working mode selection, according to different formation working conditions, select the corresponding operating mode, the equipment has wide adaptability and high work efficiency.
4. The rod torque on the power head is equipped with an overload protection system, which adopts electronic sensing and is fast, sensitive, highly reliable, and adaptable to complex working conditions.
5. Efficient one-button operating system, semi-automatic one-button lever lifting, one-button unloading, one-button vise unfastening, one-button working speed
Speed, one-button rotation at high speed, one-button push and pull at high speed, and the operating efficiency is increased by 15%.
6. Intelligent safety control system, including power head position judgment, automatic deceleration of the front and rear positions of the power head to reduce impact, and semi-automatic anti-collision interlocking system of the power head to avoid misoperation.
7. Mud flow multi-speed stepless speed regulation system and mud self-starting and stopping technology save mud and reduce pollution.
8. The tilting vise is combined with the rotating cab, the machine has a wide field of vision, multi-functional double handles, and a wireless proportional walking system, making the operation comfortable, efficient and safe.
9. Double rocker arms provide stable support and the lowest soil penetration height in the industry. It is a powerful tool for urban construction.
10. Optional power-increasing power head to meet the special needs of customers.
2. Drill pipe and drilling tool configuration
The XZ1300F horizontal directional drilling rig drill pipe, drilling tools and other accessories are configured as follows:
| Name | Type | Form | Specification | Note |
| Drill pipe | Welded | ￠114mm×6m ￠127mm×6m |
NC46 | |
| Drilling Rigs | Back Reamer | Extrusion | ￠450mm | |
| ￠600mm | ||||
| ￠750mm | ||||
| ￠900mm | ||||
| ￠1050mm | ||||
| ￠1200mm | ||||
| Tunnel | ￠450mm | |||
| ￠600mm | ||||
| ￠750mm | ||||
| ￠900mm | ||||
| ￠1050mm | ||||
| ￠1200mm | ||||
| ￠1300mm | XCMG | |||
| Accessories | Pilot guide bit | 114/127 | ||
| Guide plate | 114/127 | |||
| Puller | 114/127 | |||
| Puller | 114/127 | XCMG | ||
| Transfer case | 100T/150T | |||
| Connect | 114/127 | |||
| Mu System | Mud Mixing System | 5m3 | ||
| Instrument | Guide nstrument | Navigator E | XCMG | |
| Detector | 8100 | Radiodetection | ||
3.Main technical parameters
| Item | Parameter | ||
| Engine | Manufacture | Dongfeng Cummins | |
| China IV | Model | L9CS4 360C | |
| Rated Power | 264 kW/ 2100 r/min | ||
| Thrust/Pull | Type | rack and pinion transmission | |
| Max thrust-pull force | 1300/1600kN | ||
| Max thrust-pull speed | 32m/min | ||
| Rotation | Torque | 45000 N·m | |
| Max spindle speed | 130r/min | ||
| Rods | Diameter × Length | Φ114mm×6m | |
| Φ127mm×6m | |||
| Mud Pump | Max Flow rate | 950 L/min | |
| Max pressure | 10 Mpa | ||
| Loader | Lifting weight | 3.2 t | |
| Crane | Loading capacity | 6.4 t•m | |
| Weight | 25000kg | ||
4.Core parts subsidiary
| Name | Matching manufacturer |
| Engine | Cummins |
| Rotary pump | Sauer |
| Push pump | Sauer |
| RotaryMotor | XCMG |
| Rotary reducer | XCMG |
| PushMotor | XCMG |
| Push reducer | XCMG |
| Walking reducer | XCMG |
| Lorry crane | XCMG |
5.The Machine Appearance and Transportation
The machine transportation Dimension 11680×2760×3540mm
Shiping weight(free of Drill and Drilling Tools) 25t
6.Accompanied Attached Documents
HDD machine start when accompanied by the packing list, include the following technical documents：
Product certificate
Product Manual
Engine Specification
Air Conditioning of Construction Vehicle General Manual
Operation and Maintenance Manual of Loader Crane
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory,
shipping list with items)
