Eaton Vickers V VQ Series 20V 25V 35V 45V Single Double Balanced Hydraulic Vane Pump

Eaton Vickers V VQ Series 20V 25V 35V 45V Single Double Balanced Hydraulic Vane Pump
  • Enquiry Now!

    Product Description

    Eaton Vickers V VQ Series 20V 25V 35V 45V Single Double Balanced Hydraulic Vane Pump
    V/VQ Series intra-vane design pumps are the workhorse in industrial applications. The 12 vane design, with noise ratings as low as 62 dB(A) makes this the ideal pump for the confined spaces of the industrial workplace. The V/VQ pumps offer high volumetric efficiencies, pressures to 3000 psi and time proven reliability.
    V/VQ Series intra-vane pumps for the mobile market are unmatched in reliability and service. The 10 vane design offers the capability of speeds and pressures required for the mobile environment.
    The V & VQ series are both available with Through-drive capability.
    These units are fit, form and function replacements for Vickers® V & VQ series components.
    Tandem Pumps Available in Series:
    20V/VQ
    25V/VQ
    35V/VQ
    45V/VQ
    V2010 / V2020
    2520V / VQ
    3520V / VQ, 3525V / VQ
    520V / VQ, 4525V / VQ, 4535V / VQ
    Triple Pumps Available in Series:
    2520VQSV10
    3525VQSV10

    Product Parameters

    Single Pump V Series Specifications
    Series Displacement
    code
    Geometric displacement(ml/r) Anti-Wear Mineral Oil Weight(KG)
    Max.speed(rpm) Max.pressure(MPa)
    20V vane pump 5 17 1800 21 12
    8 27
    9 30
    10 33 16
    11 36
    12 40 14
    14 45
    25V vane pump 10 33 1800 17.2 14.8
    12 40
    14 45
    17 55
    19 60
    21 67
    35V vane pump 21 67 1800 17.5 22.7
    25 81
    30 97
    35 112
    38 121
    45V vane pump 42 138 1800 17.5 34.1
    45 147
    50 162
    57 180
    60 193
    Single Pump VQ Series Specifications
    Series Displacement
    code
    Geometric displacement(ml/r) Anti-Wear Mineral Oil Weight(KG)
    Max.speed(rpm) Max.pressure(MPa)
    20VQ vane pump 5 18 2700 21 12
    8 27
    9 30
    11 36
    12 40 16
    14 45 14
    25VQ vane pump 10 33 2700 21 14.8
    12 40
    14 45
    17 55 2500
    19 60
    21 67
    35VQ vane pump 21 67 2500 21 22.7
    25 81
    30 97
    35 112 2400
    38 121
    45VQ vane pump 42 138 2200 17.5 34.1

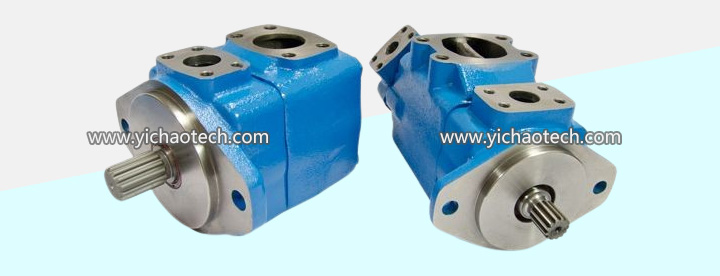

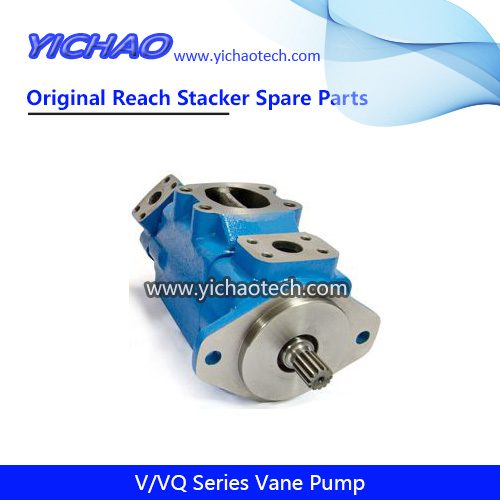

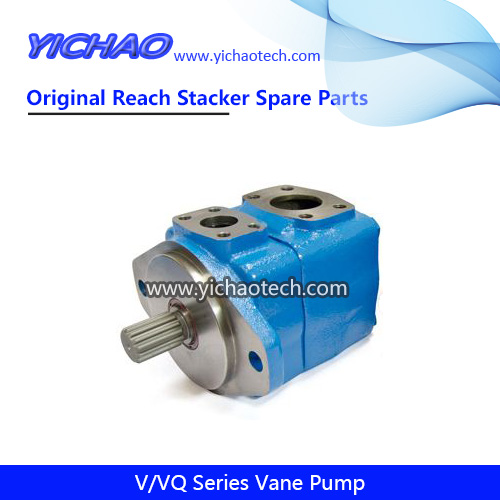

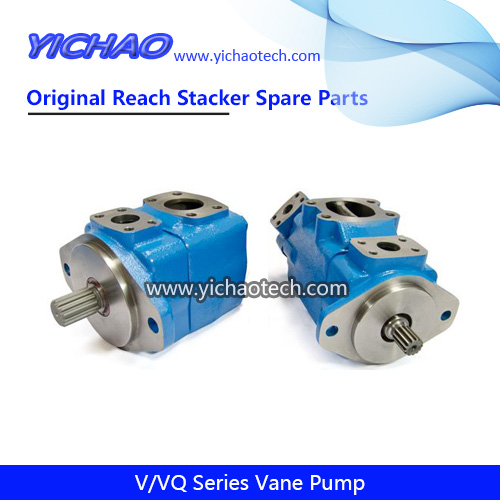

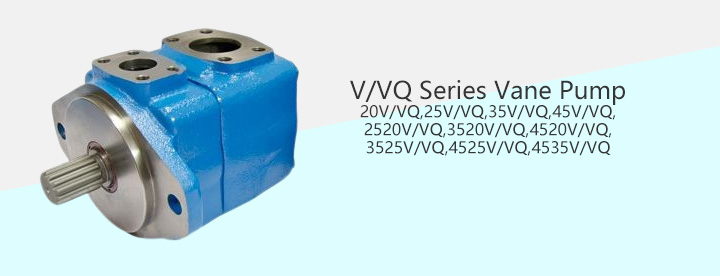

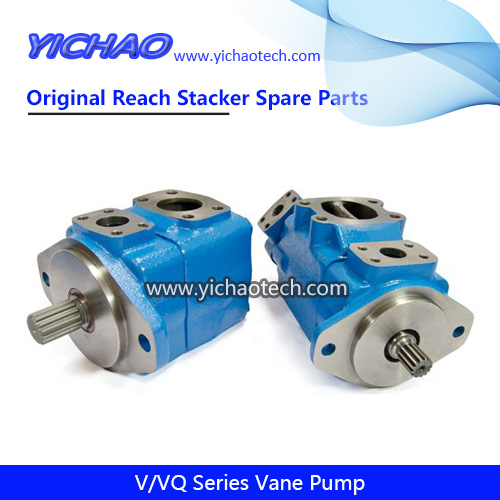

    Detailed Photos

    hydraulic pumpEaton Vickers V VQ Series 20V 25V 35V 45V Single Double Balanced Hydraulic Vane Pump
