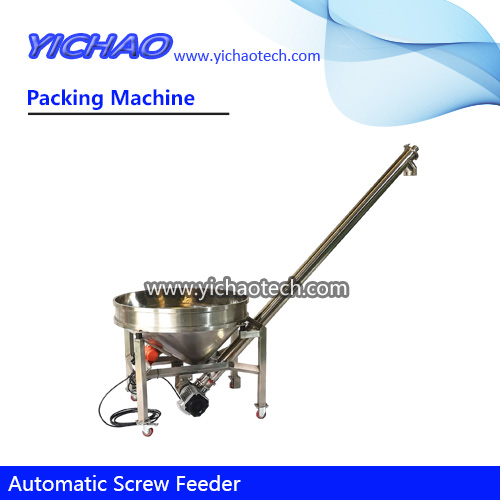

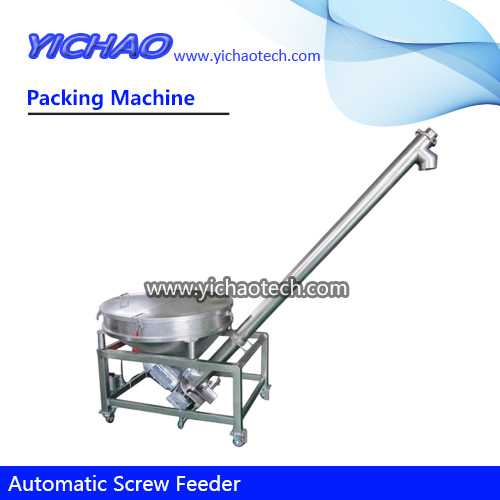

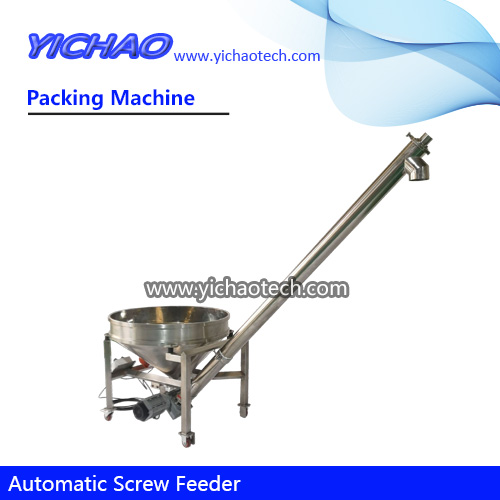

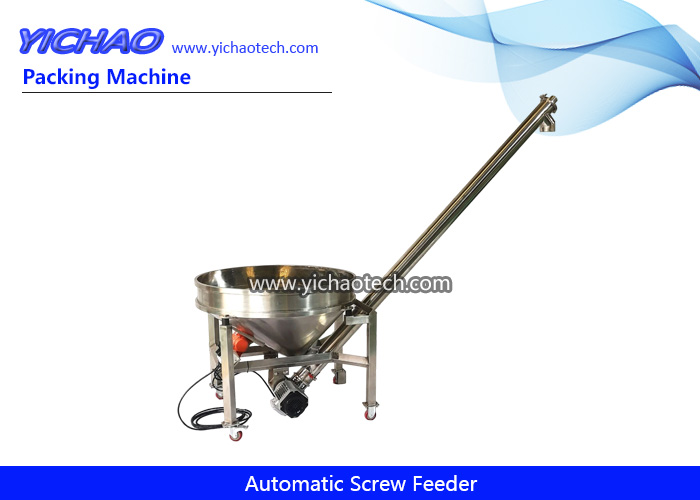

Automatic Round Bucket Hopper Vibrating Screw Feeder Conveyor Machine
The automatic circular bucket vibrating screw feeder can lift a variety of powder and granular materials. It can be matched with a packaging machine to realize automatic feeding of material level tracking, and can also be used alone in other occasions. Except for the motor, bearing and frame, the rest are made of stainless steel (can also be customized according to requirements).
Main Features
1. The high-quality and stable vibration motor is used to generate the vibration of the material box, thereby avoiding the bridging of materials with poor fluidity, the amplitude is adjustable, and the excitation efficiency is high.
2. The split-type modular design of the spiral material tube and the vibrating powder hopper makes the machine run more smoothly and disassemble and assemble more conveniently.
3. The end seat of the screw is fixed by a clamp, which is convenient for taking out the whole screw when disassembling, which is convenient for cleaning and maintenance.
4. The interface between the powder hopper and the screw is connected by a clamp, and the disassembly is quick and easy.
5. Sensors and intelligent control circuits can be added to perform functions such as material level control, automatic feeding or overload alarm.
6. Unique dust-proof design, the bearing is not polluted by dust.
7. No dead corners, easy to clean up residual materials. The screw can be reversed for discharging, and there is a gate at the lower end of the material tube for discharging, and the whole screw can be easily taken out.
8. This product is widely used in milk powder, food, medicine, feed, chemical industry, plastics and building materials and other industries.
Product Technical Parameter
1.Delivery Volume：4-5m³/h’
2.Pipe Diameter：φ141
3.Silo Volume：230L
4.Feed Height：950mm
5.Discharge Height：2600mm
6.Power Supply：380V 50Hz
7.Total Power：3.0KW
Remark
1.The part in direct contact with the material is made of 304 stainless steel.
2.The silo is equipped with a vibration motor to prevent the material from being overhead.
3.The feeding motor can be forward and reversed, and the bottom of the screw has a clearing port, the clearing port is opened, and the motor is reversed to realize automatic clearing.
4.Without silo cover.
