Aftermarket Yuken PV2R Series Fixed Displacement Single/Double Vane Pump
Product Description
“PV2R” Series Single Vane Pumps
These pumps are of high pressure and high performance, which have been developed especially for low noise operation.To comply with a variety of applications including injection moulding machines, PV2R series single pumps provide the output flow of such a wide range as from 5.8 to 237 cm3/rev (.354 to 14.46 cu.in./rev).The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit.Therefore, the replacement of the driving parts can be done easily.
Product Parameters
| Model Numbers |
Geometric Displacement 3 cm /rev (cu.in./rev) |
Max. Operating Pressure MPa (PSI) | Output Flow & Input Power |
Shaft Speed Range r/min |
||||||
| Petroleum Base Oils | Water Containing Fluids | Synthetic Fluids |
||||||||
| Anti-Wear Type |
R & O Type |
Anti-Wear Type Water Glycols |
Water Glycols |
Water in Oil Emulsions |
Phosphate Esters |
Max. | Min. | |||
| PV2R1-6 | 5.8 ( .354 ) | 21 (3050) |
16 (2320) |
16 (2320) |
7 (1020) |
7 (1020) |
16 (2320) |
1800 (1200) |
750 | |
| PV2R1-8 | 8.0 ( .488 ) | |||||||||
| PV2R1-10 | 9.4 ( .574 ) | |||||||||
| PV2R1-12 | 12.2 ( .744 ) | |||||||||
| PV2R1-14 | 13.7 ( .836 ) | |||||||||
| PV2R1-17 | 16.6 ( 1.013 ) | |||||||||
| PV2R1-19 | 18.6 ( 1.135 ) | |||||||||
| PV2R1-23 | 22.7 ( 1.385 ) | |||||||||
| PV2R1-25 | 25.3 ( 1.544 ) | |||||||||
| PV2R1-31 | 31.0 ( 1.892 ) | 16 (2320) |
||||||||
| PV2R2-41 | 41.3 ( 2.52 ) | 21 (3050) |
14 (2030) |
16 (2320) |
7 (1020) |
7 (1020) |
14 (2030) |
1800 (1200) |
600 | |
| PV2R2-47 | 47.2 ( 2.88 ) | |||||||||
| PV2R2-53 | 52.5 ( 3.20 ) | |||||||||
| PV2R2-59 | 58.2 ( 3.55 ) | |||||||||
| PV2R2-65 | 64.7 ( 3.95 ) | |||||||||
| PV2R3-76 | 76.4 ( 4.66 ) | 21 (3050) |
14 (2030) |
16 (2320) |
7 (1020) |
7 (1020) |
14 (2030) |
1800 (1200) |
600 | |
| PV2R3-94 | 93.6 ( 5.71 ) | |||||||||
| PV2R3-116 | 115.6 ( 7.05 ) | 16 (2320) |
||||||||
| PV2R4-136 | 136 ( 8.30 ) | 17.5 (2540) |
14 (2030) |
16 (2320) |
7 (1020) |
7 (1020) |
14 (2030) |
1800 (1200) |
600 | |
| PV2R4-153 | 153 ( 9.34 ) | |||||||||
| PV2R4-184 | 184 ( 11.23 ) | |||||||||
| PV2R4-200 | 201 ( 12.27 ) | |||||||||
| PV2R4-237 | 237 ( 14.46 ) | |||||||||

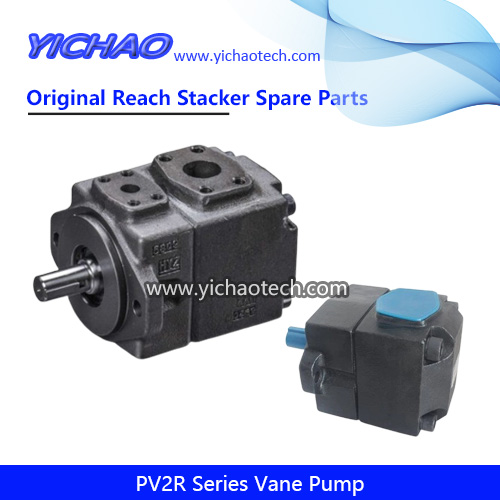

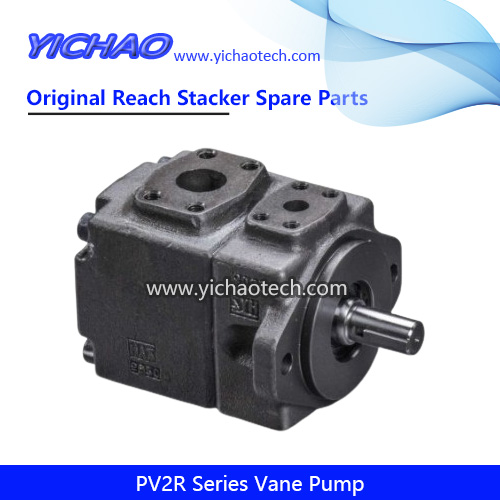

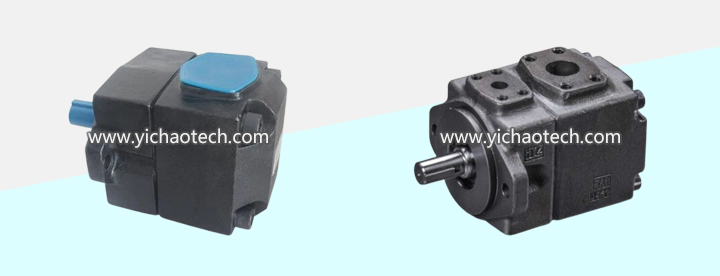

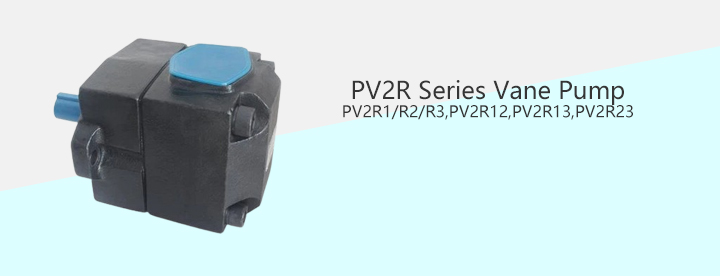

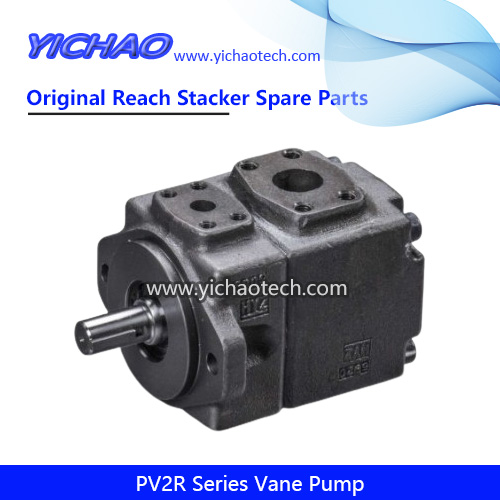

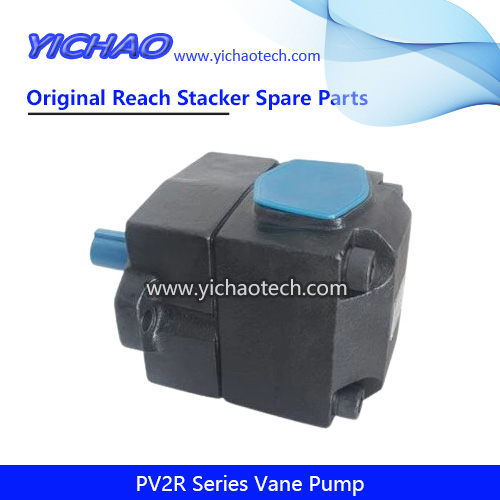

Detailed Photos
