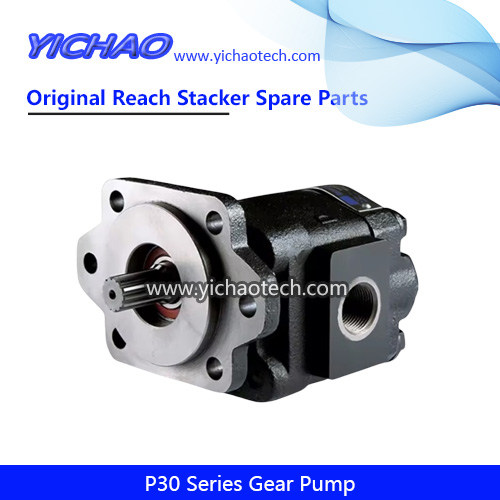

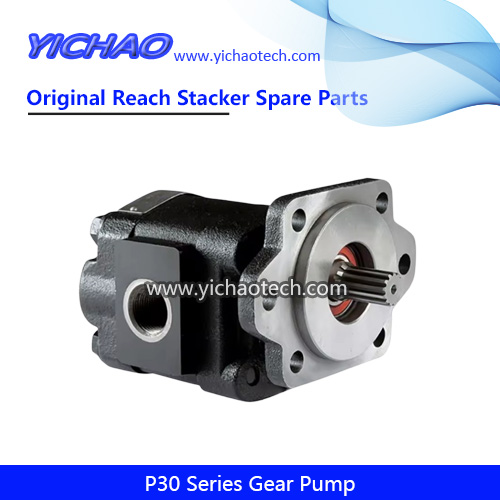

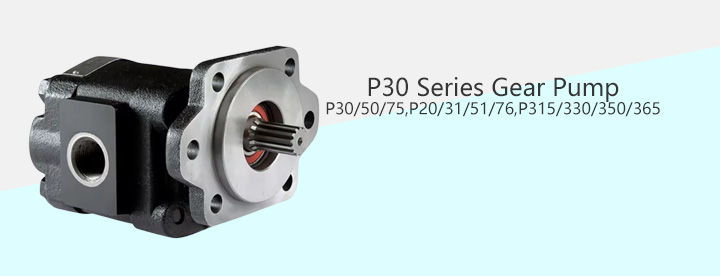

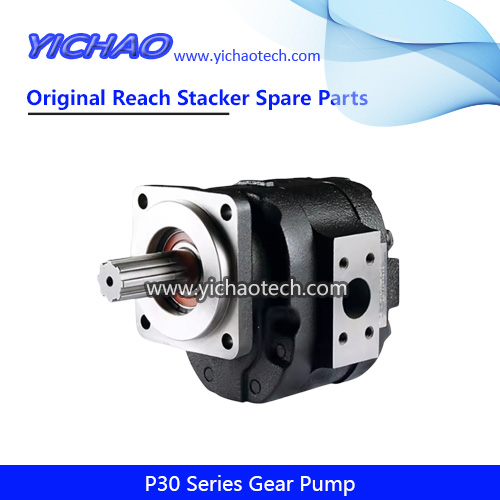

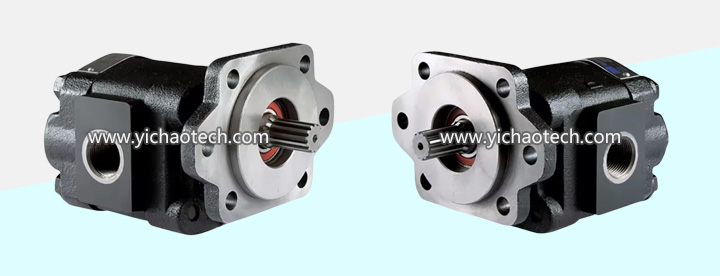

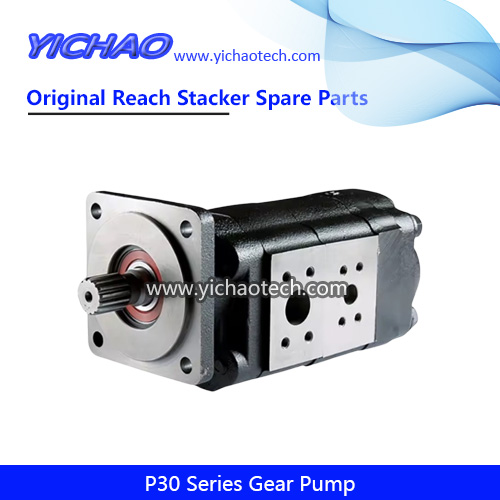

P30/50/75,P20/31/51/76,P315/330/350/365 Series Hydraulic Oil Rotary Single/Multiple Gear Pump

Enquiry Now!

Product Description

Our gears are produced to precise tolerances with a true involute profile along the tooth thus maximising volumetric efficiency.The result is more efficient longer lasting pumps and motors with lower noise emissions.
Characteristics:
High efficiency single/multiple units
Wide range of displacements
Optional shafts/mountings
Rugged cast iron construction
Motor assemblies available
Complete parts program
Flow dividers available

Product Parameters

ROLLER BEARING GEAR PUMPS PERFORMANCE DATA
IFP MODEL SERJES	Gear width (inches)	Theoretical displacement		Mineral oil maximum pressure				Recommended speedrange		Approximate weight
				Continuous		Intermitent		Max	Min	Single unit		Add section
		in3/rev	cm3/rev	PSI	BAR	PSI	BAR	rpm	rpm	lbs	kg	lbs	kg
P30/31	1/2	1.00	16.39	2750	190	3000	207	2400	600	31	14	25	11
	3/4	1.48	24.58	2750	190	3000	207	2400	600	32	14.5	26	11.5
	1	1.97	32.77	2750	190	3000	207	2400	600	33	15	27	12
	11/4	2.46	40.97	2750	190	3000	207	2400	600	34	15.5	28	12.5
	11/2	2.96	49.16	2750	190	3000	207	2400	600	35	16	29	13
	13/4	3.45	57.35	2250	155	2500	172	2400	600	36	16.5	31	14
	2	3.94	65.55	2250	155	2500	172	2400	600	37	17	32	14.5
P50/51	3/4	1.91	31.66	2750	190	3000	207	2400	600	35.5	16.5	29.5	13
	1	2.55	42.11	2750	190	3000	207	2400	600	37	17	31	14
	11/4	3.19	52.77	2750	190	3000	207	2400	600	38.5	17.5	32.5	15
	11/2	3.83	63.25	2750	190	3000	207	2400	600	40	18	34	15.5
	13/4	4.46	73.74	2750	190	3000	207	2400	600	41.5	19	35.5	16
	2	5.10	84.23	2250	155	2500	172	2400	600	43	19.5	37	17
	21/4	5.74	94.88	2250	155	2500	172	2400	600	48.5	22	42.5	19
	21/2	6.38	105.37	2250	155	2500	172	2400	600	50	22.5	44	20
P75/76	3/4	3.07	50.40	2750	190	3000	207	2400	600	69	32	57	26
	1	4.10	6,720	2750	190	3000	207	2400	600	72	33	59	27
	11/4	5.12	84.00	2750	190	3000	207	2400	600	75	34	62	28
	11/2	6.15	100.80	2750	190	3000	207	2400	600	77	35	64	29
	13/4	7.17	117.60	2750	190	3000	207	2400	600	80	36	67	31
	2	8.20	134.40	2250	155	2500	172	2400	600	82	37	69	32
	21/4	9.22	151.20	2250	155	2500	172	2400	600	85	39	72	33
	21/2	10.25	168.00	2250	155	2500	172	2400	600	87	40	74	34
	23/4	11.27	184.80	1750	120	2000	138	2400	600	90	41	77	35
	3	12.30	201.60	1750	120	2000	138	2400	600	92	42	79	36
