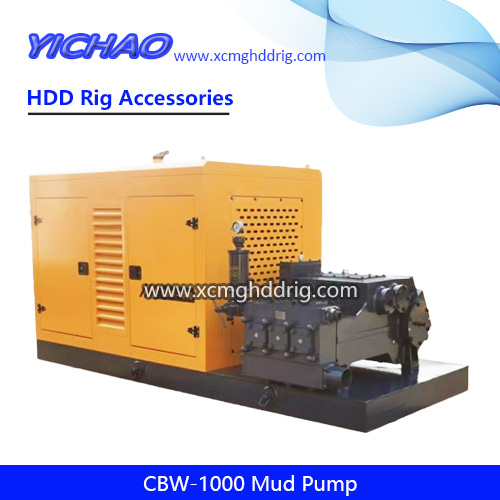

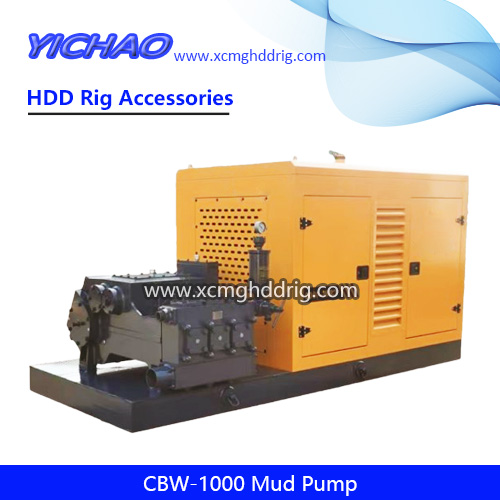

CBW-1000 High Flow Trenchless Drill Mud Pump for Oil/HDD Drilling Machine
Product Usage and Features
CBW-1000 mud pump is a horizontal three-cylinder reciprocating single action piston pump, driven by diesel engine, using the speed gearbox instead of the traditional pulley drive, and wireless remote pneumatic control clutch. It is mainly used for matching use with about 100 tons of trenchless drilling rig, and can also be used for other aspects of grouting, mine sewage discharge and long-distance water supply and other purposes. The pump has four kinds of flow and four kinds of pressure, flow and pressure change range, can be suitable for different aperture drilling and drag. The design, new structures, new materials and new technology, compact structure, light quality, small size, beautiful appearance, convenient installation and maintenance, high output pressure, long service life and stable performance.
Technology Parameters
| Type | Horizontal Three-Cylinder Single-Acting Reciprocating Piston Pump Gear |
| Stroke （mm） | 150 |
| Cylinder Bore（mm） | 115 |
| Flow(L/min) | 1000 645 500 320 |
| Pressure(MPa) | 4 6 8 11 |
| Rated Power(KW) | 80 |
| Overall Dimension（mm） | 3650*1811*1635 |
| Weight(KG) | 3780 |
| Diesel Engine Model NO. | QSB5.9-P130 |
| Diesel Engine Power(KW) | 96 |
| Rated Speed(r/min) | 1500 |
