Rexroth A2VK,A2FO,A2F,A7V High Pressure Hydraulic Axial Piston Pump

Rexroth A2VK,A2FO,A2F,A7V High Pressure Hydraulic Axial Piston Pump
  • Enquiry Now!

    Product Description

    Rexroth A2VK,A2FO,A2F,A7V High Pressure Hydraulic Axial Piston Pump
    The A2VK series variable displacement axial Piston Pump is for pumping and metering polyurethane components.
    These high quality replacement Rexroth “A2VK” series hydraulic piston pumps are manufactured by “Super Hydraulics” with genuine design and completely interchangeable with Rexroth “A2VK” pumps.
    Description:
    – 100% Interchange With Rexroth’s
    – Price: Competitive, Up to 70% Price Off
    – Warranty: 12 Months just like OEM Pump
    – Mark: Super Hydraulics
    – SKU: Rexroth A2VK Replacement Pump
    – Categories: Hydraulic Pump, Piston Pump, Rexroth_A2VK
    – Spare Parts: Pump & Motor Parts, Rexroth
    Axial piston high pressure variable pumps are use for the pumping and metering of polyurethane components.
    The particular advantages offered by the A2VK variable pumps are:
    ·High metering accuracy and repeatability of the variable flows
    ·Manual control via handwheel with built-in-precision measuring scale
    ·Operating pressure up to 250 bar
    ·Low suction pressure,even when pumping highly viscous fluids
    ·Very little pulsation of flow
    ·Compatability of pump components with materials to be pumped(Polyol,Isocyanat) through use of specially matched materials and special seals
    ·Quiet operation
    ·Optimum volumetric efficiency
    Technical Data
    Mounting Position
    Optional;the unit must always be filled with oil.
    With MA control device:axis of handwheel must be horizontal,because of position indicator.
    Operating Pressure Range-inlet Side
    Open circuit:
    Prefill pressure1-3bar absolute at suction port S
    Closed circuit:
    Sum of combined pressures at A and B≤250bar(320bar for short period),fit leakage line at port T.
    Operating Pressure Range-outlet Side
    Pressure at port A and B
    Nominal pressure pN=250bar
    Peak pressure pmax=320bar

    Product Parameters

    Series Displacement(CC) Pump Remark
    A2VK 12/28/55/80/107 Piston Pump 1-5
    A2FO 16/23/28/32/56/63 Piston Pump 6.1
    A2FO 80/107/160/250 Piston Pump 6.1
    A2F 12/28/32/45/56/63/80/90 Piston Pump 1-5
    A2F 107/160/180/225/250/500 Piston Pump 1-5
    A7V 40/55/80/107/160 Piston Pump 1-5

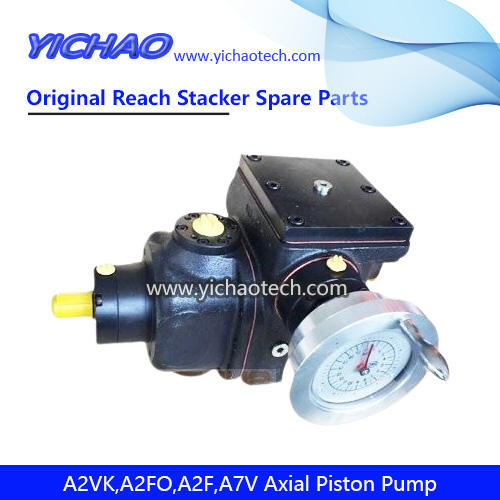

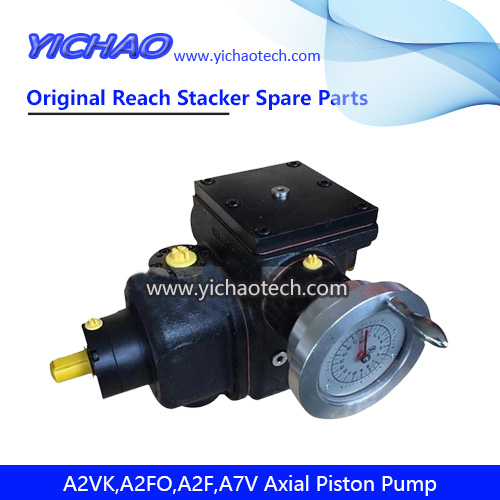

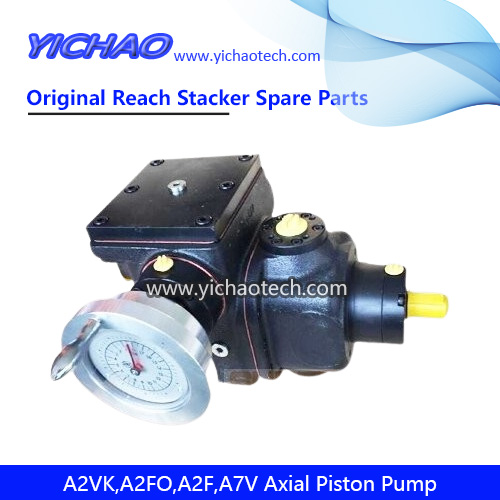

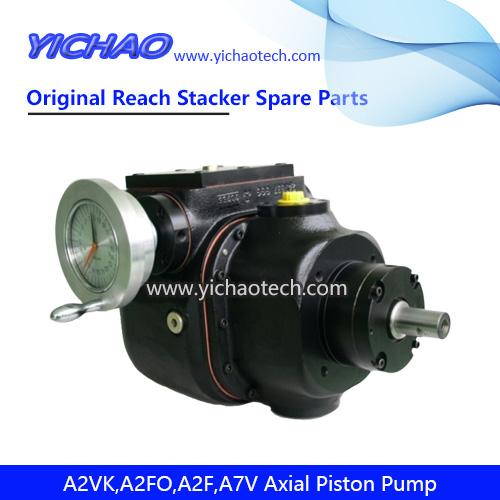

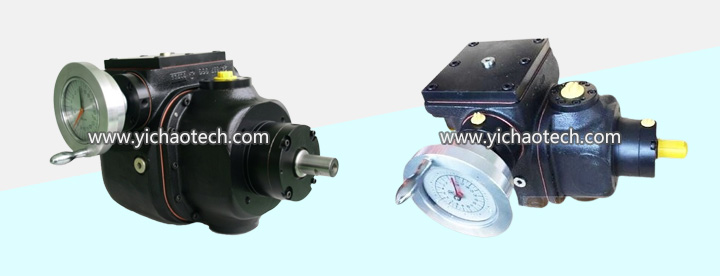

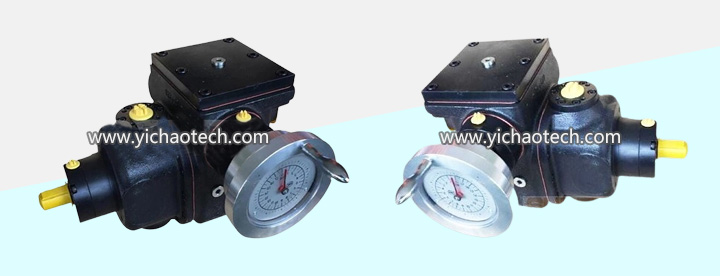

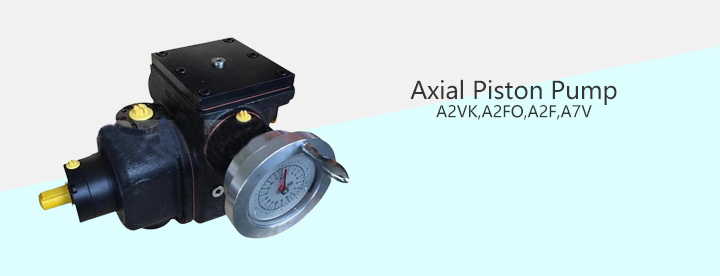

    Detailed Photos

    hydraulic pump Rexroth A2VK,A2FO,A2F,A7V High Pressure Hydraulic Axial Piston Pump Rexroth A2VK,A2FO,A2F,A7V High Pressure Hydraulic Axial Piston Pump
