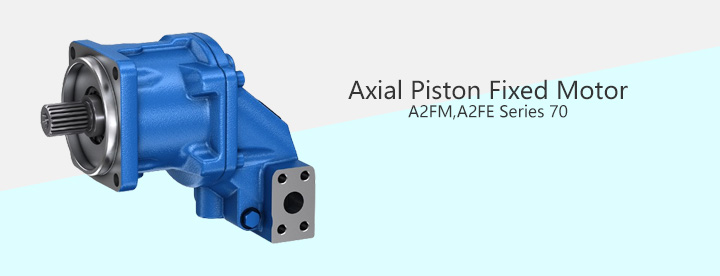

Rexroth A2FM,A2FE Series 70 Hydraulic Axial Piston Fixed Motor
Product Description
Fixed motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
·For use in mobile and stationary applications
·Design with SAE mounting flange and UNF resp. UNC threads
·Also available as plug-in version and with metric threads
·The output speed is dependent on the flow of the pump and the displacement of the motor.
·The output torque increases with the pressure differential between the high-pressure side and the low-pressure side.
·Finely graduated sizes permit far-reaching adaptation to the drive concerned
·High power density
·Small dimensions – compact design
·High total efficiency
·Good starting efficiency
·Integrated flushing valve optional
Product Parameters
| Series | Displacement(CC) | Motor | Remark |
| A2FM | 12/28/32/45/56/63 | Motor | 1-5 |
| A2FM | 80/90/107/160/180 | Motor | 1-5 |
| A2FM | 16/23/32/45/56/63 | Motor | 6.1 |
| A2FM | 80/90/107/160/180 | Motor | 6.1 |
| A2FE | 45/56/63/80/90 | Motor | 6.1 |
| A2FE | 107/125/160/180 | Motor | 6.1 |

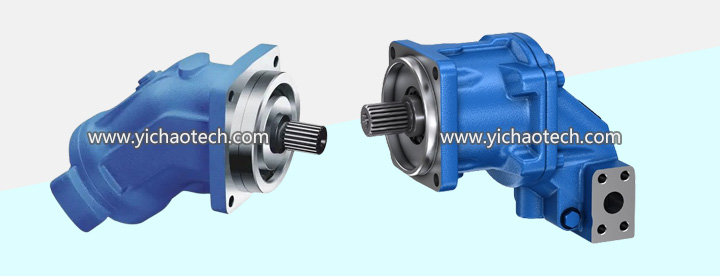

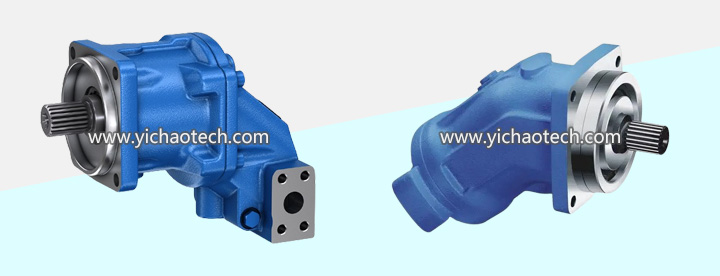

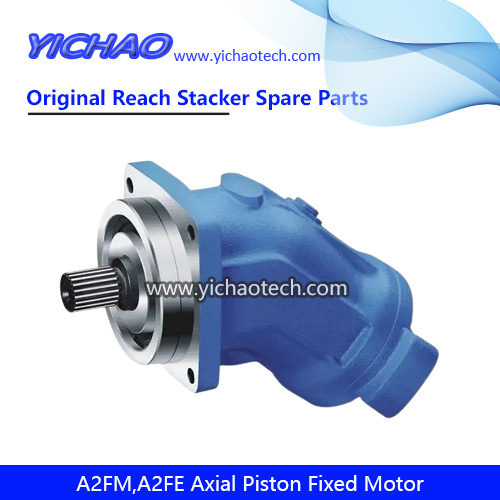

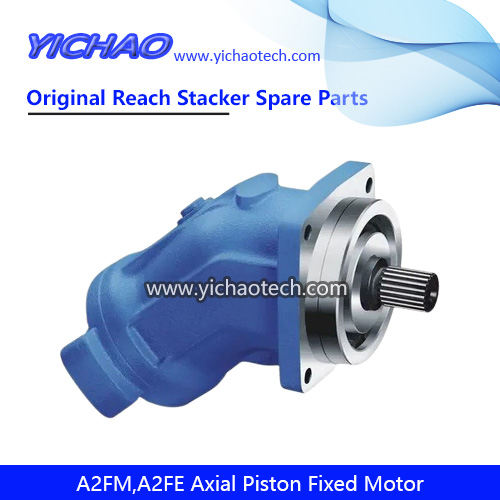

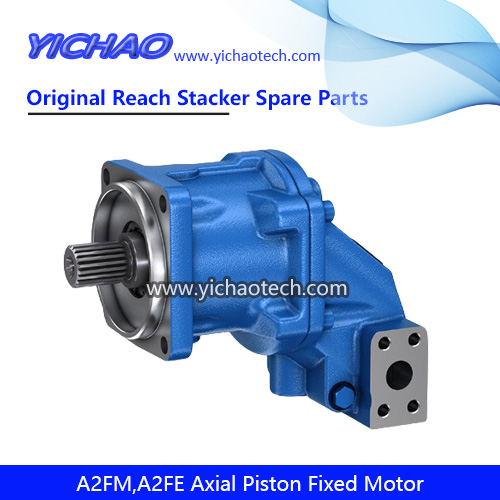

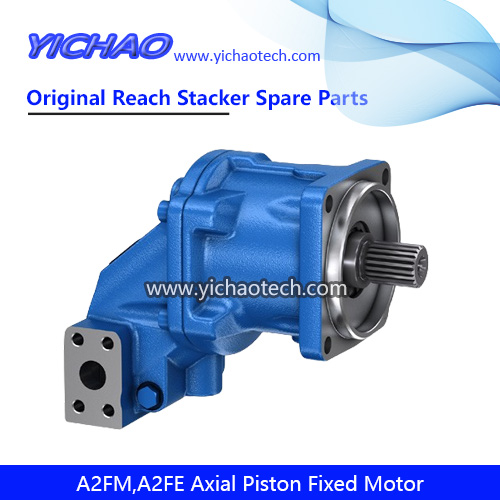

Detailed Photos
