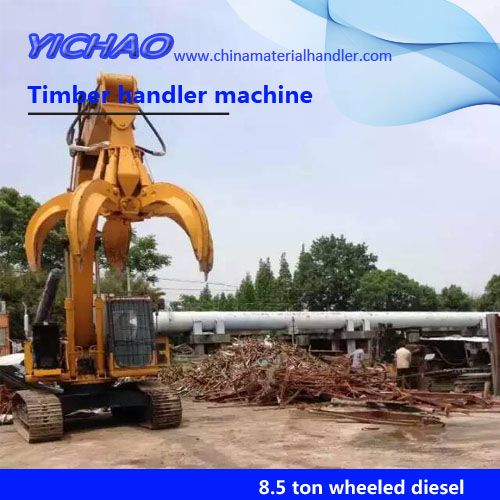

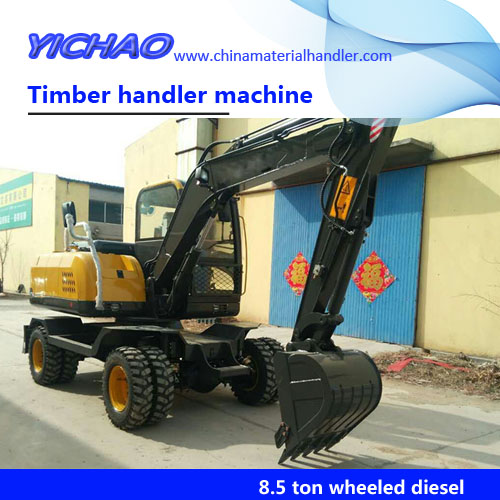

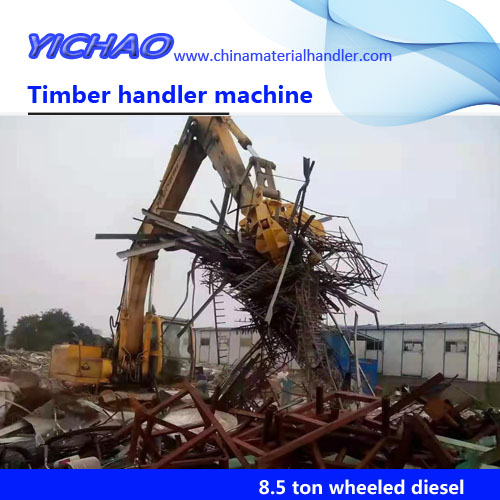

China Small 8500kg 8.5Ton Wheeled Hydraulic Grapple Crane With Log Grab Scrap Grabber Excavator
Enquiry Now!China small 8500kg/8.5 ton wheeled grapple crane with log grapple/ hydraulic log grab crane / excavator grab scrap grapple crane
Parameters
8.5 ton wheeled hydraulic log grapple excavator parameters | |||
Item | Unit | Data | |
Basic parameters of the machine | Operating weight of the whole machine | kg | 7600 |
Bucket capacity | m³ | 0.28 | |
Full length during transportation | mm | 6404 | |
Full width during transportation | mm | 2150 | |
Width of turntable | mm | 2000 | |
Full height during transportation | mm | 2748 | |
Length of boom | mm | 3650 | |
Length of bucket arm | mm | 1850 | |
Ground clearance height of counterweight | mm | 948 | |
Radius of rotation of the tail | mm | 2054 | |
Minimum ground clearance height | mm | 240 | |
Tire distance | mm | 1670 | |
Wheelbase | mm | 2400 | |
Scope of work | Maximum digging distance | mm | 6547 |
Maximum digging depth | mm | 4364 | |
Maximum digging height | mm | 6536 | |
Minimum radius of rotation | mm | 2288 |
Performance parameters | Power system | Engine model (brand) | YD4JZG-YANGDONG |
Form | Water cooling/pressurization | ||
Rated power | 60/2400 | ||
Maximum torque | 245/1610 | ||
Hydraulic system | Model (hydraulic pump) gear pump | SGP1A2XF2H9-Shimadzu | |
Model (hydraulic pump) plunger pump | T5VP2D27-Doosan | ||
Main valve (brand) | Parker | ||
Hydraulic tank | 110 | ||
Fuel tank capacity | 130 | ||
Operating system | Rotating speed | 12 | |
Walking speed | 35 | ||
Bucket digging force | 49 | ||
Bucket arm digging force | 40 | ||
Main traction force | 43 | ||
Gradeability | 35 | ||
Parking brake | Automatically air-cut brake | ||
Crane brake | Air brake |
